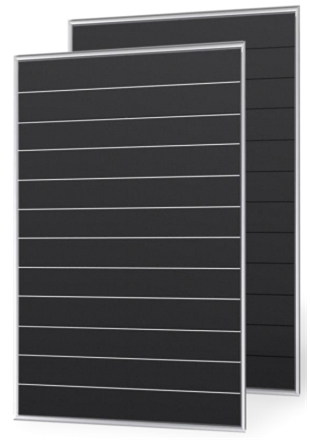

Plant Solar module
| Maximum Power (PMPP) | W | 720 | 605 |
|---|---|---|---|
| Open circult Voltage (VOC) | V | 54.4 | 48.96 |
| Short circult Voltage (ISC) | A | 18.39 | 15.84 |
| Voltage at Pmax (VMPP) | V | 44.3 | 39.8 |
| Current at Pmax (IMPP) | A | 17.3 | 14.9 |
| Dimensions | (L)1,180 X (W)2,990 X (H)35mm | (L)1,180 X (W)2,370 X (H)35mm | |
| Weight | 30kg | 23kg | |
| Junction Box | Read current:20A, PV03 / Cable(L):0.3m | ||
| Construction | Front:Safety glass 5T / Encapsulation:EVA | ||
- It is a solar module with a heat-dissipating steel plate on the back, and it is a solar module integrated with construction materials specialized for house and commercial building roofs
- No need for additional exterior materials as it functions as a building roof finishing material, High durability (impact resistance - hail, wind pressure, earthquake resistance, etc.)
- Reduces building and module installation time through simple construction
- Secures the building's design and aesthetics while producing a high output in a limited area
- Through integration with steel plates suitable as construction materials, it satisfies both performance and safety
