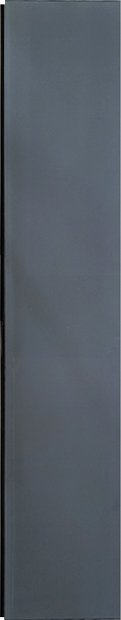

Steel plate integrated Solar module
| Maximum Power (PMPP) | W | 190 |
|---|---|---|
| Open circult Voltage (VOC) | V | 21.76 |
| Short circult Voltage (ISC) | A | 11.4 |
| Voltage at Pmax (VMPP) | V | 17.71 |
| Current at Pmax (IMPP) | A | 10.7 | Dimensions | (L)1,950 X (W)515mm |
| Weight | 16kg | |
| Junction Box | Read current:20A, PV03 / Cable(L):0.3m | |
| Construction | Front:Safety glass 5T / Encapsulation:EVA | |
- Cell integration technology by division/junction, as opposed to present solar module production technology (busbar type)
- Division/Junction module: Shingled Module=High Density Module=Zero White Space
- High-output module manufacturing technology: High-density & high-output modularization -> Improved efficiency (increased production) in comparison to the same area
- Increasing the capability of solar energy generation in limited construction area -> Reduce site and construction costs -> Maximizing power generation business feasibility
- Increase aesthetics (design) by implementing black solar modules -> Increasing urban application and consumer preference
